Highest Grade for Semiconductor Factories

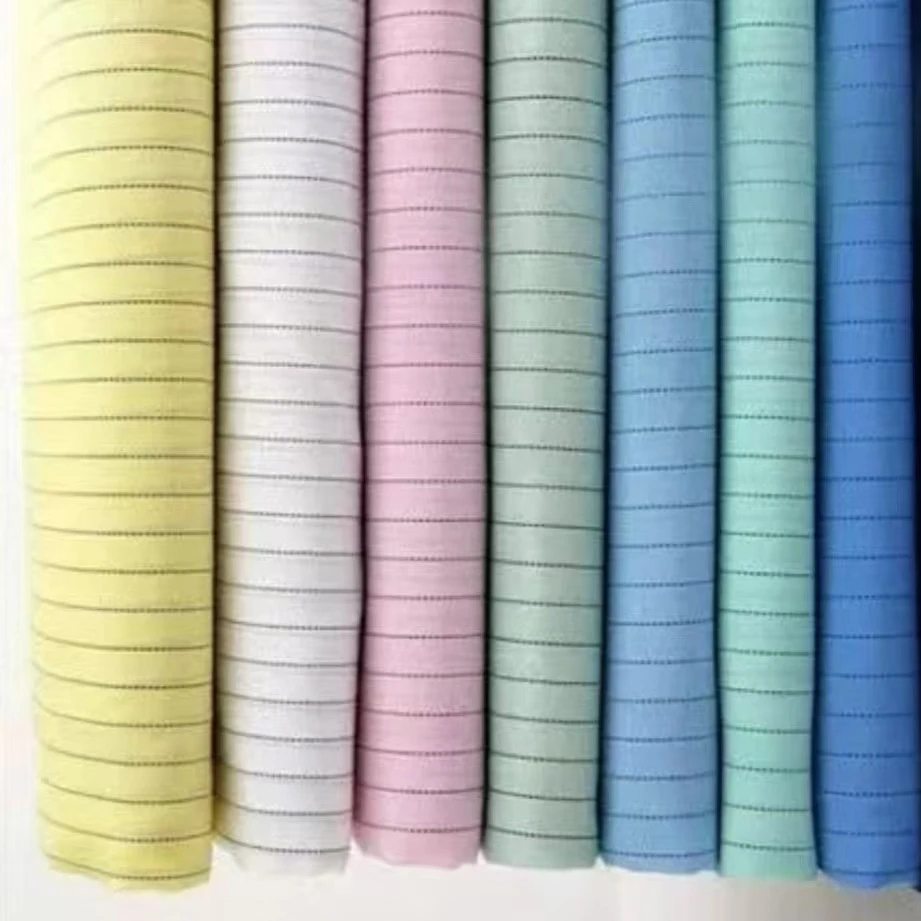

Semiconductor and LCD panel factories need the highest ESD protection. The fabric must have very low static voltage and almost no particle shedding. We use microfiber polyester (75D/72F). The density is 220T. Carbon fibers are packed tightly at 5 per cm. Spacing is 0.2mm. Weight is 95 grams per square meter. We call this product Antistatic ESD Fabrics. It is for the most sensitive environments.
Key Data Table
|
Property |
Value |
|
Base Fabric |
Microfiber polyester 75D/72F |
|
Density |
220T |
|
Carbon Fiber Density |
5 per cm, 0.2mm spacing |
|
Weight |
95 g/m² |
|
Point to Point Resistance (ANSI/ESD STM11.11) |
10⁵ to 10⁷ ohms |
|
Static Voltage (at 30% RH) |
<50 volts |
|
Static Decay (1000V to 50V) |
<0.05 seconds |
|
Particle Shedding (ISO 14644-1) |
Class 5 |
|
Steam Sterilization (121°C, 20 cycles) |
>90% ESD performance retained |
|
Wash Resistance (100 washes) |
<10⁸ ohms |
|
Silicone Free |
Yes |
Sterilizable and Extremely Clean
This Antistatic ESD Fabrics can be steam sterilized at 121 degrees Celsius. After 20 cycles, it keeps over 90% of its ESD performance. The fabric has no silicone oil. It will not contaminate products. The particle shedding meets ISO Class 5 cleanroom standards. That is very clean. A semiconductor factory used to buy imported fabric. They tested ours and said the performance is the same. The price is 30% lower. They switched to us.
We Provide Full Test Reports
Our Antistatic ESD Fabrics come with complete ESD and cleanliness test reports. We can slit the fabric to any width. We can also sew finished garments. You are welcome to visit our factory. Minimum order is 1000 meters. FOB shipping. Payment is 50% deposit and 50% balance for this high grade fabric. Free samples are available. Try this fabric for your most sensitive production lines.
