Long Life for Industrial Use

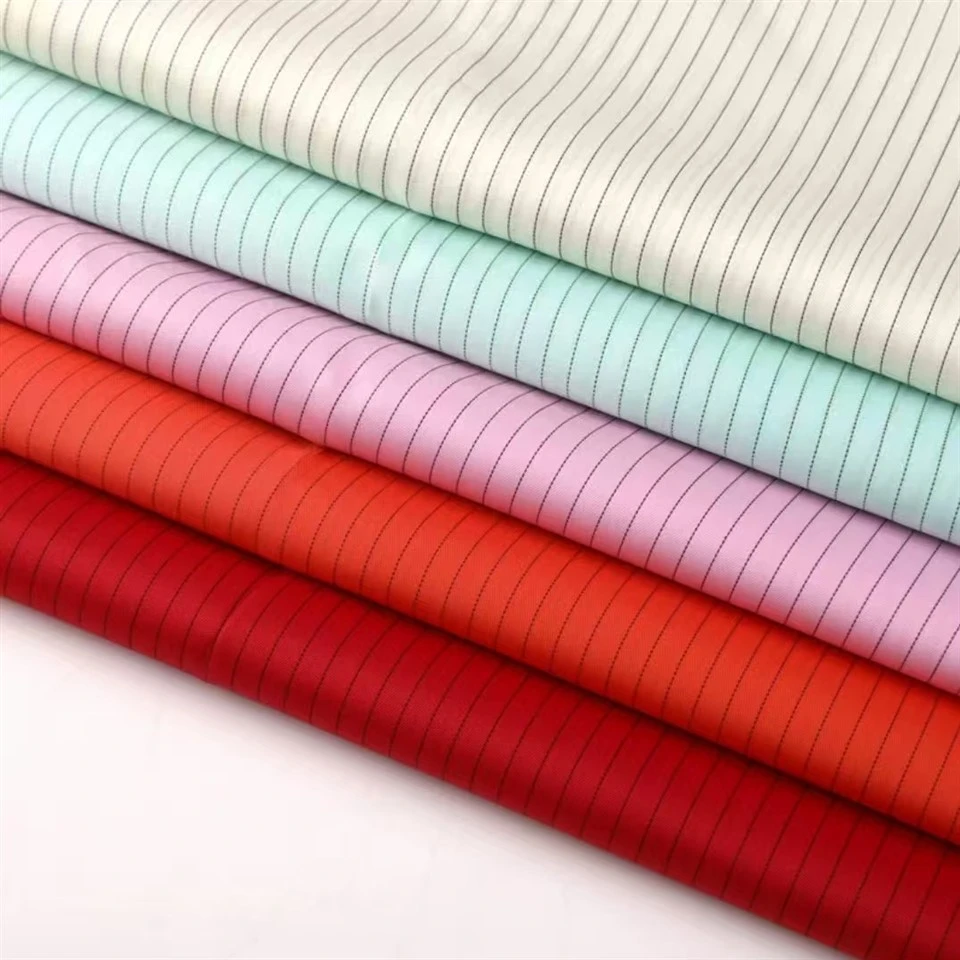

Some anti static applications need the fabric to last for years. Tool bags, conductive roller brushes, anti static curtains, and industrial filters need this. We use copper plated conductive yarn. The base is high strength 1000D polyester industrial yarn. Weave is plain, 30×30. We insert copper plated conductive yarn at 5mm spacing. Weight is 320 grams per square meter. We call this product Static Resistant Fabric. It is very tough.
Key Data Table
|
Property |
Value |
|
Base Fabric |
1000D high strength polyester |
|
Weave |
Plain, 30×30 |
|
Conductive Yarn |
Copper plated, 5mm spacing |
|
Weight |
320 g/m² |
|
Surface Resistance |
10³ to 10⁵ ohms (low resistance grade) |
|
Static Voltage |
<50 volts |
|
Wash Resistance (100 washes) |
Resistance change <1 order |
|
Volume Resistivity |
<10³ ohm·cm |
|
Tensile Strength (Warp / Weft) |
3000N / 2800N |
|
Abrasion (H18, 1000g, 1000 cycles) |
<1.0g weight loss |
|
Copper Oxidation Resistance |
Treated |
|
Chemical Resistance |
Resists most organic solvents |
Low Resistance for Grounding
This Static Resistant Fabric has very low surface resistance. 10³ to 10⁵ ohms. You can connect it to ground. Static electricity will drain away instantly. The copper yarn is treated to resist oxidation. It will not turn green quickly. The fabric is very strong. Tensile strength is 3000 Newtons. It can hold heavy tools. The abrasion resistance is also high. Weight loss after 1000 cycles is less than 1 gram.
A Tool Bag Factory Uses It for Five Years
A factory makes anti static tool bags for electronics repair. They have used our Static Resistant Fabric for five years. The bags still pass the ESD test. The factory owner said, "We tried other fabrics. They stopped working after two years. Yours lasts." We can custom make any resistance range you need. Free samples are available. We provide life test data. Minimum order is 500 meters. FOB shipping. Payment is 30% deposit and 70% balance. Try this fabric for your long life anti static products.
