Product Overview

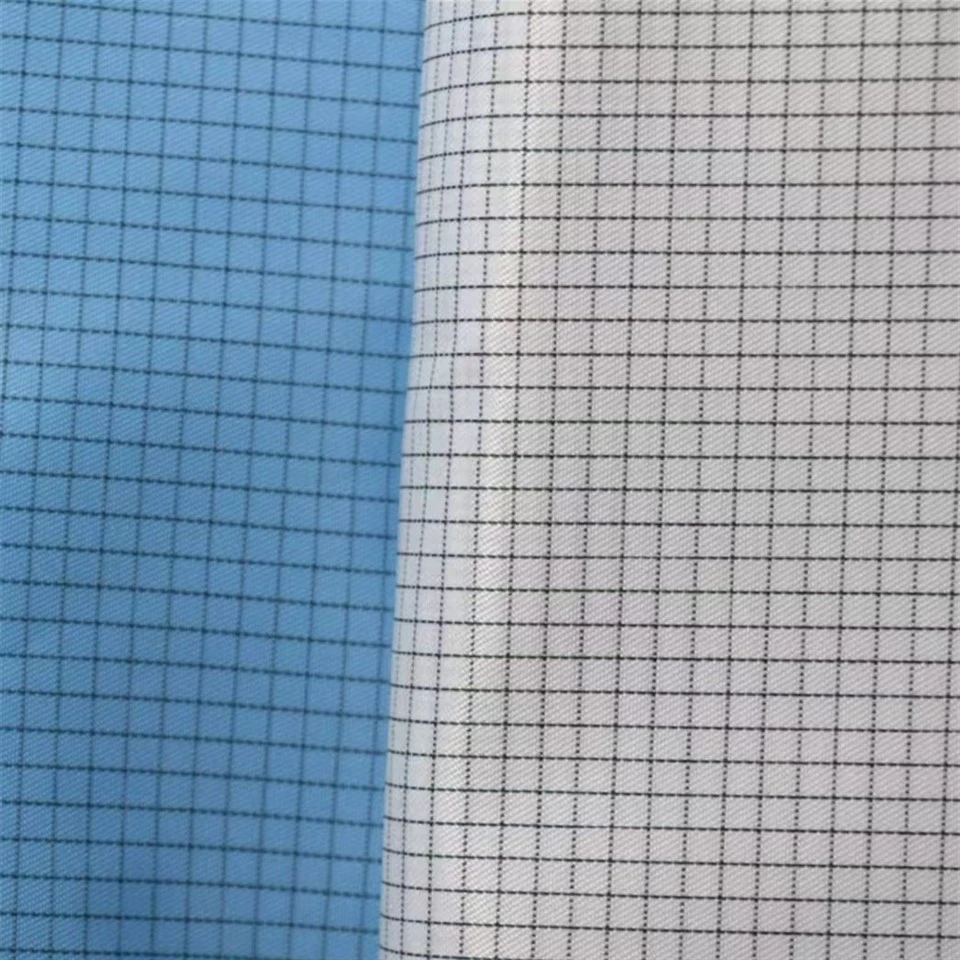

Anti Static Polyester Fabric is a lightweight conductive polyester material for cleanroom and ESD garments. A representative construction uses 100D × 100D polyester, a 5 mm carbon grid, about 98% polyester / 2% conductive component and a finished weight near 110 g/m². It is used for cleanroom gowns, caps, sleeves, gloves and light ESD workwear in electronics, optics, medical-device and other controlled production areas that need low-lint fabric with built-in static dissipation.
Key Data Table
| Specifications | Value |
| Fabric | 100D×100D, 5mm grid |
| Weight | 110 g/m² (±5 g) |
| Composition | 98%P+2%ESD |
| Electrical Resistance | GB12014-2009 |
| Performance | 10-6--10-7 |
Core Advantages
Controlled Electrostatic Dissipation
Carbon yarn is distributed through the weave, and the listed electrical-resistance range is 10⁶-10⁷ Ω. This helps limit local charge buildup on sleeves, torso panels and other garment areas that repeatedly move close to ESD-sensitive parts.
Low-Lint Cleanroom Construction
The base construction uses smooth polyester filament rather than cotton staple. That reduces loose-fiber generation as garments flex and rub in controlled rooms, while keeping the material light enough for extended wear.
Wash-Resistant Conductive Performance
Surface resistance remains below 10⁹ Ω after 100 washes on the listed construction. For reusable cleanroom clothing, this provides a measurable laundering benchmark for the woven conductive system rather than relying on a short-life topical anti-static finish.
Customization Capability
Conductive Spacing
Cleanroom versions can use 5 mm or 10 mm conductive spacing in grid or stripe form. The layout is chosen to suit the garment pattern and the required electrical target.
Fabric Weight
Light ESD polyester fabrics can be developed around the 100-150 g/m² range. Yarn count and weave are adjusted to balance opacity, drape and finished garment weight.
Color Range
White, light blue, light yellow and navy are available reference shades, with matched custom colors for cleanroom or departmental color coding.
Quality Control
- Polyester yarn, conductive-yarn spacing and weave are checked before finishing. Inspection gives particular attention to broken carbon lines and density variation because both can change resistance across the fabric width.
- Electrical-resistance testing is carried out together with weight, shade and surface inspection. When laundering performance is part of the order, resistance is measured after the agreed wash sequence as well as on the unwashed fabric.
- Every shipment receives 100% inspection before packing. Independent third-party inspection can be arranged when required.
FAQ
Q: How is the lead time determined?
A: It is confirmed after color, grid spacing, quantity and any wash-test requirement are finalized.
Q: Which shipping term is available?
A: FOB shipping is available.
Q: Does polyester moisture absorption provide the anti-static effect?
A: No. The electrostatic function comes from the conductive yarn integrated into the fabric.
Q: Does fabric data alone certify a finished cleanroom garment?
A: No. The completed garment and cleanroom program require their own validation.
