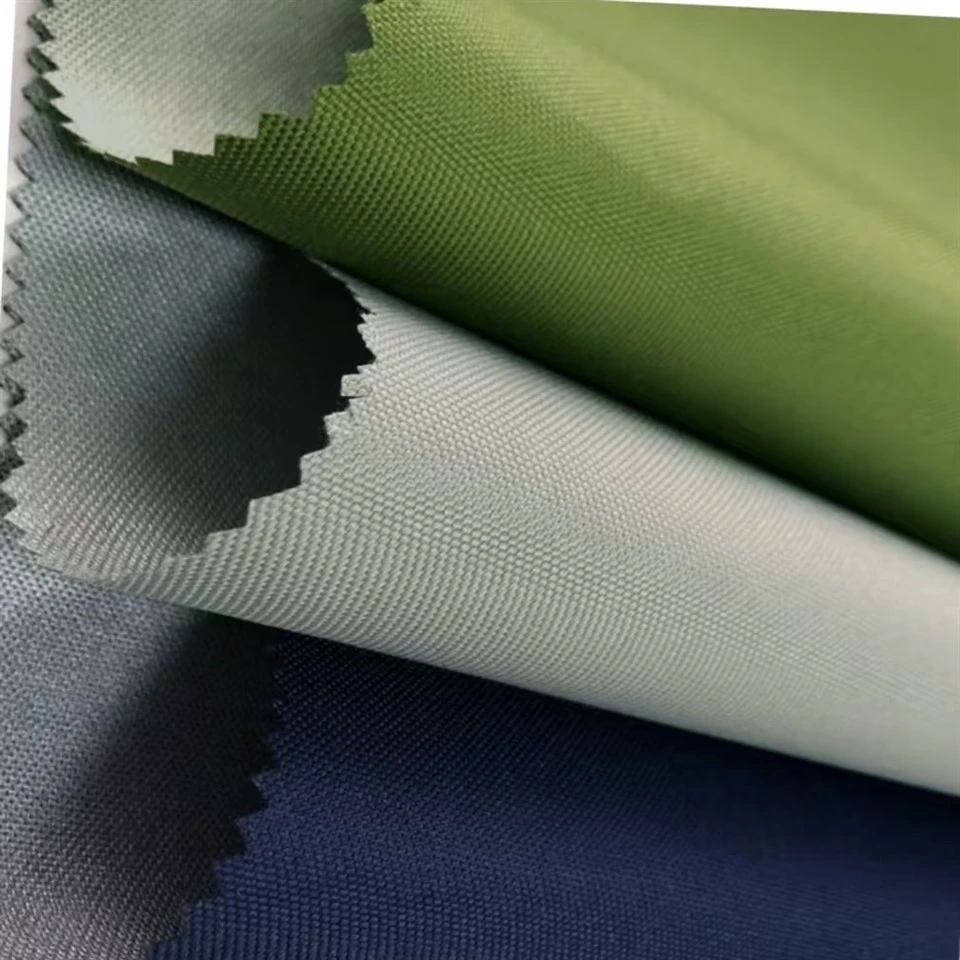

Coated Oxford Fabric

Coated Oxford Fabric is a woven polyester Oxford textile with a functional surface coating that forms a barrier layer. It is used for bags, luggage, tents, awnings, equipment covers, outdoor furniture, protective cases and industrial textile products that need a coated outer material.

600D Base Strength

The 600D construction has approximately 2,000 N warp tensile strength, 1,800 N weft tensile strength and 100 N warp tear strength. These figures are relevant at loaded areas such as bag handles, cover tie-down points, tent attachment zones and equipment-case corners, where stress is concentrated and tears can begin to spread.

Water Resistance by Coating Type

Water resistance depends on the coating system: approximately 3,000 mm H₂O for PU, 10,000 mm for PVC and 20,000 mm for TPU. The coating can therefore be matched to the actual barrier requirement, from lighter rain exposure to prolonged outdoor wetting or higher water-pressure demands.

Low-Temperature Flexibility

PVC- and TPU-coated versions show no cracking at -30°C. This is relevant for winter covers, outdoor storage products and gear that may be folded after cold exposure, where a brittle coating can crack and create a path for water or dirt.

Base Fabric

The base construction is 600D×600D polyester Oxford. Coating and other functional targets are developed around that fabric.

Finished Width

Standard coated-Oxford production is available at 58/60 inches, with 68/70-inch wide-width constructions also available.

Color and Surface Finish

Color can be matched to Pantone/TPX or an approved swatch. Surface finish can be matte, semi-matte or gloss, and printed graphics can be added when required.

• Greige Oxford is checked for denier, density, basis weight, width and weaving defects before coating. During coating, mix consistency and application uniformity are controlled to avoid obvious thick-thin bands, pinholes and uneven hand across the roll.
• Finished lots are compared with the approved construction and functional specification. Coating build is reviewed against the agreed production target before release.
• Every roll is checked before packing for color consistency, edge condition, coating marks, creases, contamination and roll length. Independent third-party pre-shipment inspection is accepted when required.
