Product Overview

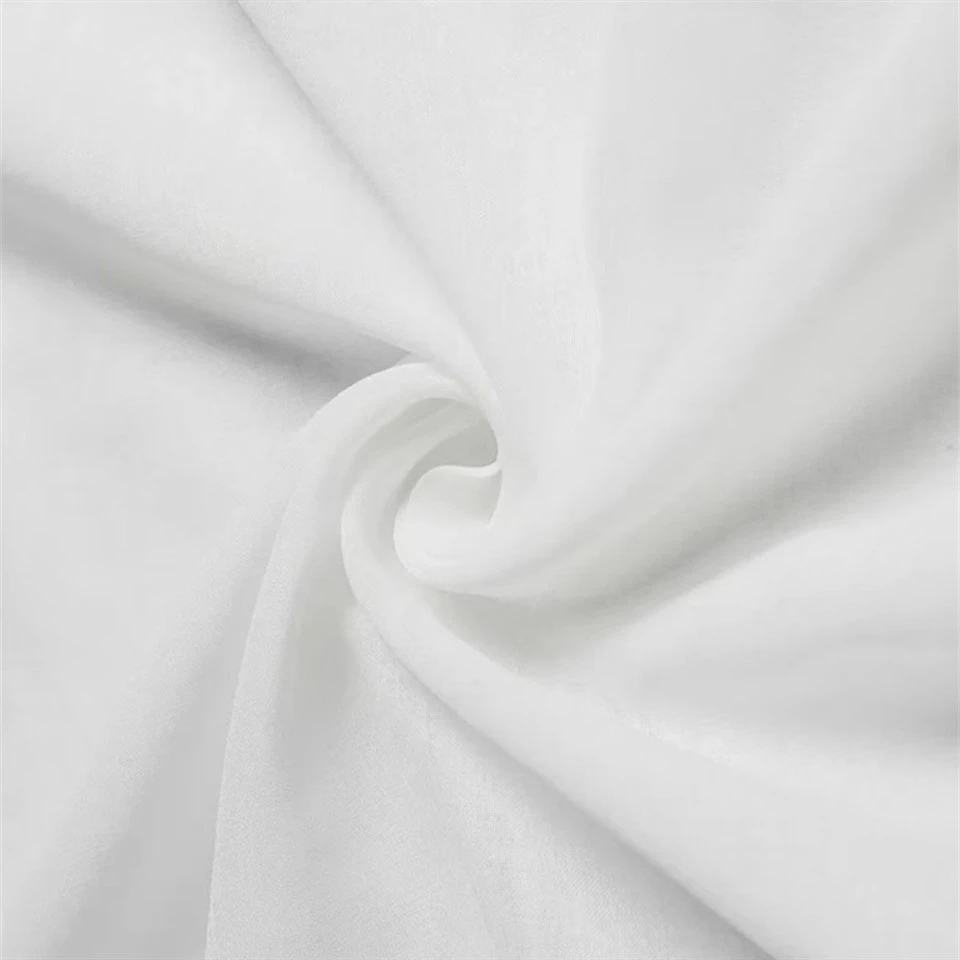

Tent Window Screen Fabric is a lightweight polyester monofilament mesh for ventilated openings in tents and shelters. It can be used for windows, door panels, roof vents, inner-tent ventilation areas and detachable insect-screen sections.
Key Data Table
|
Property |
Value |
|
Yarn Diameter |
0.22mm polyester monofilament |
|
Mesh Opening |
0.8mm × 0.8mm (approx. 20 mesh) |
|
Open Area |
60% |
|
Weight |
38 g/m² |
|
Air Permeability |
1800 cm³/s/cm² (ASTM D737) |
|
Insect Blocking |
All insects >2mm |
|
UV Aging (300h QUV) |
>90% strength retained |
|
Puncture Resistance |
15N (ISO 13937-2) |
|
Abrasion (H10, 1000g, 1000 cycles) |
Light fuzzing, no broken yarn |
|
Color Fastness to Light |
Grade 6 (ISO 105-B02) |
Key Advantages
High Airflow Through a 60% Open Area
The Key Data Table lists a 60% open area and air permeability of 1,800 cm3/s/cm2 under ASTM D737. That leaves a substantial airflow path through a screened opening even when a tent door or window is closed for insect protection.
0.8 mm Mesh for Insect Screening
The mesh uses 0.22 mm polyester monofilament with 0.8 mm x 0.8 mm openings, approximately 20 mesh. The table states that it blocks insects larger than 2 mm. This makes the opening size relevant to mosquitoes, flies and other larger flying insects while still keeping the panel ventilated.
UV, Abrasion, and Light-Fastness Stability
After 300 hours of QUV exposure, the table records more than 90% strength retention. It also lists light fuzzing with no broken yarn after 1,000 H10 abrasion cycles at a 1,000 g load, plus Grade 6 light fastness. These checks are useful for mesh that will be zipped, rolled, rubbed by equipment and left in sunlight, where the screen still needs to retain its function and appearance.
Customization Capability
Mesh Geometry
Yarn diameter, opening geometry and mesh count can be developed from an approved screen sample or a stated ventilation requirement.
Color and Panel Format
Mesh color, roll format and cut-panel dimensions can be prepared from the confirmed tent-window drawing.
Edge Finishing
Edge binding, sewn attachment strips and other panel-edge treatments can be added when they are part of the approved sample.
Quality Control
- Production checks cover monofilament diameter, mesh opening, open area, finished weight, usable width and mesh squareness before the material is released as roll goods or cut panels.
- When specified for the order, functional sampling covers air permeability, insect-screen opening control, UV aging, abrasion behavior and light fastness.
- Rolls and panels are checked before packing for holes, broken yarn, distorted openings, edge damage, panel dimensions, labels and packing condition. Third-party inspection is accepted when required.
FAQ
Q: Can I get a sample of the mesh?
A: Yes. Regular product samples can be provided free of charge.
Q: How is the lead time determined?
A: Lead time is confirmed once the mesh construction, color, panel format and finishing requirements are fixed.
Q: Does the 0.8 mm opening block every insect species?
A: No. The Key Data Table states blocking for insects larger than 2 mm; it does not claim that every insect species is blocked.
Q: Does the air-permeability value certify ventilation for a complete tent?
A: No. The air-permeability figure is a fabric or mesh result. Ventilation of a complete tent also depends on the total vent area, its placement and the finished structure design.
