Air Tight Fabric for Fast Setup Tents

Inflatable tents do not use poles. Air beams hold the shape. So the fabric must hold air pressure without leaking. We use 600D oxford for this product. It gives high strength and high air tightness. The base is 600D polyester oxford. Density is 64T×64T. Weight is 210 grams per square meter. Coating is thermoplastic polyurethane (TPU) on both sides. Total thickness is 0.25mm. Air beam seams use high frequency welding. We call this Oxford Cloth Inflatable Tent fabric.

Key Data Table

Property	Value
Base Fabric	600D polyester oxford
Density	64T×64T
Weight	210 g/m²
Coating	TPU double sided, 0.25mm total
Air Tightness (15 kPa, 8h)	Pressure drop <10%

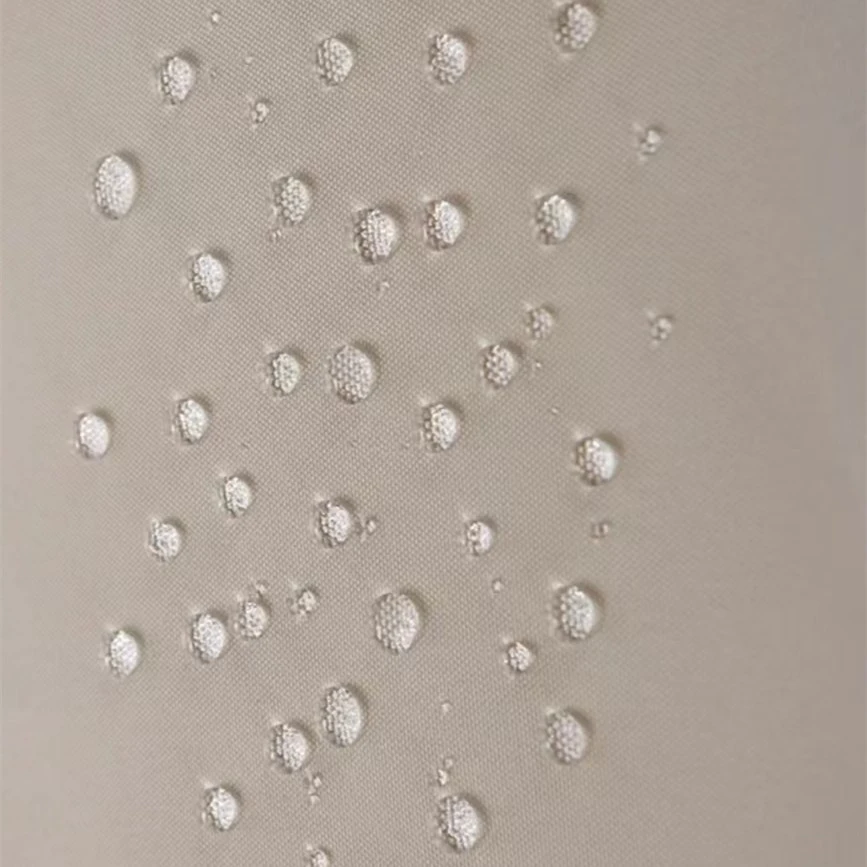

Water Resistance	20000 mm H₂O (ISO 811)
Tensile Strength (Warp / Weft)	2000N / 1800N (ISO 1421)
Low Temperature Flexibility	No cracks at -30°C (ISO 4675)
Abrasion (H18, 1000g, 1000 cycles)	<0.8g weight loss
UV Aging (500h QUV)	>85% strength retained
Flame Retardant Option	BS 7837

No Smell and Good for the Environment

We use polyether type TPU. It resists hydrolysis better than polyester type. This Oxford Cloth Inflatable Tent fabric has no plasticizers. There is no bad smell. It meets environmental requirements. At minus 30 degrees, it folds without cracks. It resists mold. High frequency weld peel strength is good. Seams do not come apart under pressure. We also offer a flame retardant version that meets BS 7837.

A Disaster Tent Customer Came Back

Last year, an emergency tent customer needed fast setup disaster tents. We gave them this fabric. They made 100 tents and tested them in a disaster area. The setup speed was fast. Air beams held pressure all night. This year, they ordered 500 more tents. Our factory has 80 workers. Monthly capacity is one million meters. We can weld the air beams for you. Free samples are available for regular fabric. Payment is 30% deposit and 70% balance. FOB shipping.
