Product Overview

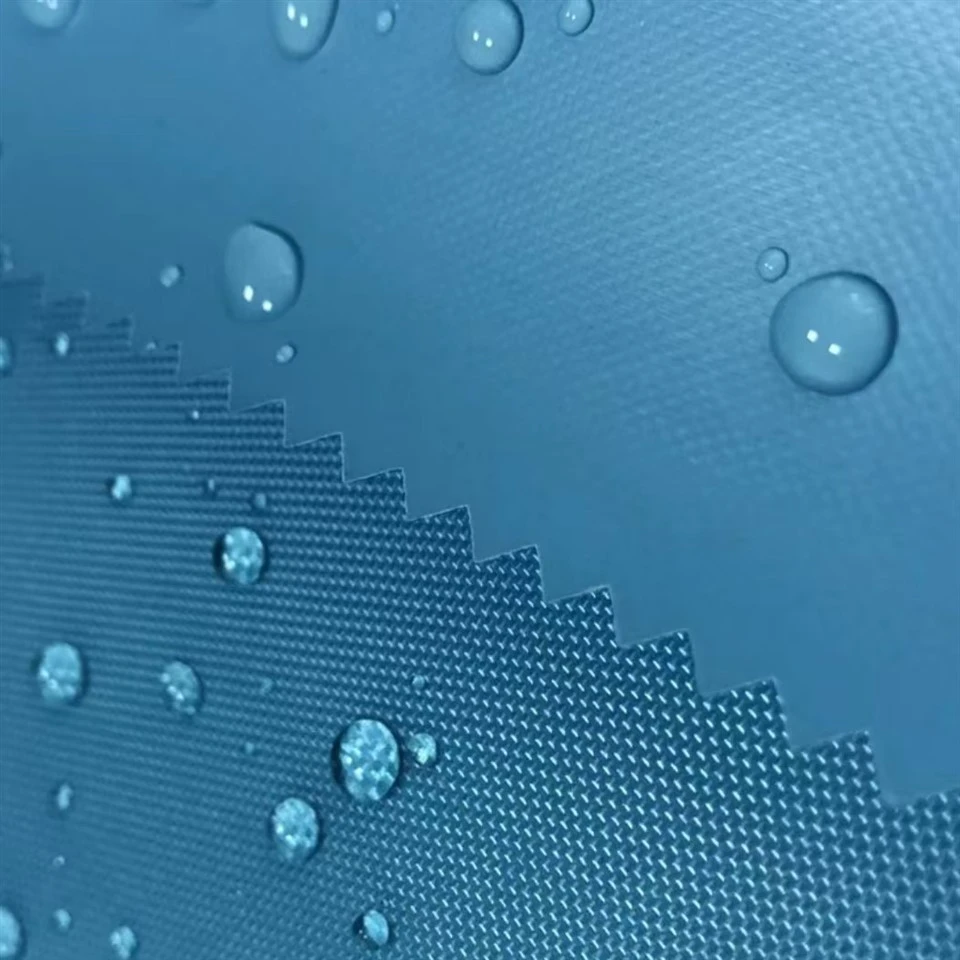

Waterproof Shade Cloth for Pergola is an opaque coated Oxford roof fabric for outdoor pergola and canopy systems. Typical applications include fixed pergola roofs, retractable canopy systems, terrace covers, gazebo replacement roofs, and outdoor hospitality structures.

Key Data Table

Specifications	Value
Fabric	300D x 300D Oxford fabric
Weight	300 g/m² (±5 g)
UV Protection (UPF)	50+
UVA Transmittance	<1%
Water Resistance (Hydrostatic Pressure)	3000 mm H₂O

Core Advantages

300D × 300D Oxford Roof Structure
The fabric uses a 300D × 300D Oxford construction at 300 g/m² (±5 g). The dense base gives large pergola panels enough body for cutting and sewing, including panels held under frame tension or opened and closed repeatedly in retractable systems.

UPF 50+ UV Protection
The canopy grade is rated UPF 50+ with UVA transmittance below 1%. On pergolas and terrace roofs exposed during peak summer hours, the opaque construction sharply reduces ultraviolet transmission through the roof.

3,000 mm Hydrostatic Resistance
Hydrostatic resistance reaches 3,000 mm H₂O. On a correctly sloped pergola roof, the coating prevents rain from penetrating the main roof panel and keeps the area below protected during repeated rainfall.

Customization Capability

Panel Dimensions

Cut and sewn roof panels can be made to the confirmed length, width, seam position, and frame drawing for fixed or retractable pergola systems.

Surface and Color

Roof appearance can be specified with reflective or solid outdoor-facing finishes, backing color, and production colors matched to an approved swatch.

Fixing Layout

Bound perimeter edges and fixing-point positions can be arranged to the confirmed frame and tensioning layout.

Quality Control

For each order, staff verify the confirmed Oxford construction and use the approved sample where applicable. Basis weight, surface condition, and overall fabric consistency are compared with the agreed specification using inspection equipment.
Orders with defined UV protection or hydrostatic resistance requirements are checked against the confirmed product specification. For converted panels, staff also compare dimensions and fixing layout with the approved drawing.
Every finished roll or converted panel is inspected before packing. The 100% check covers appearance, edge condition, dimensions, and conversion accuracy. An independent third-party shipment check is accepted when required.
