Product Overview

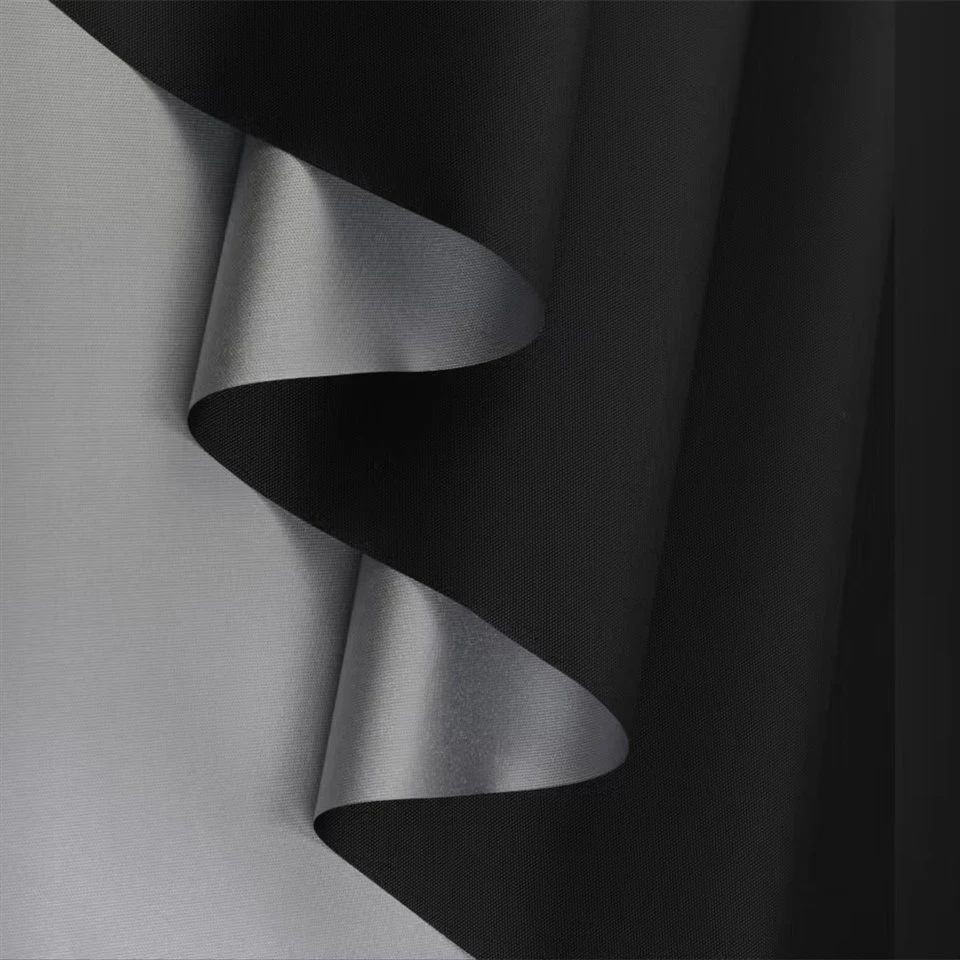

Roof Top Tent Fabric is a reinforced coated polyester material for vehicle-mounted roof tents that are opened, folded, transported, and exposed repeatedly to rain, sunlight, cold conditions, and road-speed airflow.

Key Data Table

Property	Value
Base Fabric	600D×600D high strength polyester
Reinforcement	1200D at corners and stress points
Weight	210 g/m²
Coating	TPU or PVC double sided, 0.25mm
Tensile Strength (Warp / Weft)	2500N / 2300N
Water Resistance	20000 mm H₂O (ISO 811)
Tear Strength (Warp)	120N
Fold Test (5000 mechanical folds)	No cracks, >85% strength retained
Wind Resistance (wind tunnel)	120 km/h
UV Aging (1000h QUV)	>80% strength retained
Weld Peel Strength	15 N/cm
Low Temperature Flexibility	No cracks at -30°C

Key Advantages

Reinforced Load Paths for Vehicle-Mounted Tents

The 600D base reaches 2500 N warp and 2300 N weft tensile strength, with 1200D reinforcement at corners and stress points and 120 N warp tear strength. The reinforcement is concentrated around hinge zones, roof corners, ladder-side attachments, and tensioned panel edges where repeated pulling and vibration can cause local damage.

Built for Repeated Folding Cycles

After 5,000 mechanical folds, the coating shows no cracks and the fabric retains more than 85% of its strength. That test condition reflects the repeated crease movement created when a roof tent is opened and collapsed throughout its service life.

Weather Protection During Camp and Transit

The fabric provides 20,000 mm H₂O water resistance, passes a 120 km/h wind-tunnel condition, and remains crack-free at -30°C. These values cover the main weather stresses the material faces during heavy rain at camp, cold-weather packing, and airflow around a secured vehicle-mounted tent system.

Customization

Coating Options

TPU or PVC double-sided coating can be selected according to hydrolysis resistance, surface feel, odor requirement, cost target, and the downstream welding method. Coating build is then set to the finished tent design.

Reinforcement & Panels

1200D reinforcement can be positioned at hinge zones, corners, ladder-side loads, and other stress areas. Cut panels and reinforcement patches can be prepared from the approved drawing or sample.

Color, Branding & Conversion

Options include solid colors, project-matched shades, logo printing, roll goods, cut-and-sew conversion, and finished-tent assembly for roof-top tent brands and OEM programs.

Quality Control

The production reference for this roof-top tent fabric is a 600D×600D high-strength polyester base, 1200D reinforcement at corners and stress points, 210 g/m² finished weight, and a 0.25 mm double-sided TPU or PVC coating.
Acceptance values include 2500 N warp / 2300 N weft tensile strength, 20,000 mm H₂O water resistance to ISO 811, and 120 N warp tear strength. After 5,000 mechanical folds, the coating shows no cracks and the fabric retains more than 85% strength. The specification also includes 120 km/h wind-tunnel resistance, more than 80% strength retained after 1,000 h QUV aging, 15 N/cm weld peel strength, and no cracking at -30°C.
Finished rolls or converted panels are inspected 100% before packing. Third-party inspection can be arranged before shipment when required.
